    10.1 Inch Automotive Display G101ICE-LM1 Innolux LCD 1280*800 High Resolution

    Ask Lasest Price
    Brand Name : INNOLUX
    Model Number : G101ICE-LM1
    Certification : ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
    Price : Please contact us for latest price
    Delivery Time : 1~7 working days
    Payment Terms : T/T, L/C, Credit card, PayPal
    Supply Ability : 500,0 pieces per day
    • Product Details
    • Company Profile

    10.1 Inch Automotive Display G101ICE-LM1 Innolux LCD 1280*800 High Resolution

    10.1 inch Automotive Display G101ICE-LM1 Innolux LCD with 1280*800 High Resolution

    Product Information:


    Innolux G101ICE-LM1 Mechanical Details
    Pixel Features :Resolution1280(RGB)×800, WXGADot Pitch(mm)0.0565×0.1695 (H×V)
    Pixel FormatRGB Vertical StripePixel Pitch(mm)0.1695×0.1695 (H×V) [149PPI]
    Mechanical Size :Active Area(mm)216.96(H) × 135.6(V)Bezel Area(mm)-
    Outline Dim.(mm)227.42(H) × 147.69(V)Depth(mm)2.55/2.8 (Typ./Max.)
    Outline Features :Form StyleFlat RectangleShape Style
    Aspect Ratio16:10 (H:V)OrientationLandscape type
    Mounting :Without
    Other Spec:Weight183/190g (Typ./Max.)TreatmentAntiglare, Hard coating (3H)
    Innolux G101ICE-LM1 Optical Details
    Basic Information :Luminance(cd/m²)350 (Typ.)Contrast Ratio800:1 (Typ.) (Transmissive)
    Viewing Angle88/88/88/88 (Typ.)(CR≥10)Display ModeAAS, Normally Black, Transmissive
    Best View onSymmetryResponse(ms)13/12 (Typ.)(Tr/Td)
    Color Performance :White CoordinateWx:0.313; Wy:0.329Display Colors262K/16.7M (6-bit / 8-bit)
    Color Temperature6485KWhite Uniformity1.25 (Max.)(5 points)
    1931 Color Gamut :NTSC Ratio66%sRGB91% coverage
    Adobe RGB69% coverageDCI-P369% coverage
    Rec.202050% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    Features:

    • Product Name: INNOLUX LCD Display
    • Automotive lcd
    • Smart medical application
    • Smart retail application
    • smart manufacturing application
    • 50 pin lvds display

    The INNOLUX LCD Display features an LCD backlight that provides a bright and even display. With a luminance of 350 nits, it is capable of producing clear and vivid images, making it an ideal choice for industrial applications that require high-quality visuals.

    In terms of design, the INNOLUX LCD Display has an outline dimension of 227.42*147.69*4.35, making it a compact and space-saving display solution. Its slim profile also makes it easy to integrate into various industrial applications without taking up too much space.

    The INNOLUX LCD Display also boasts an impressive viewing angle of 88/88/88/88 RLUD, ensuring that users can view the display from virtually any angle without any loss in visual quality. This makes it perfect for industrial applications where users need to view the display from different angles.

    The INNOLUX LCD Display is also designed to operate in a wide range of temperature conditions. It has an operating temperature range of -10℃ to 60 ℃, making it suitable for use in various industrial environments.

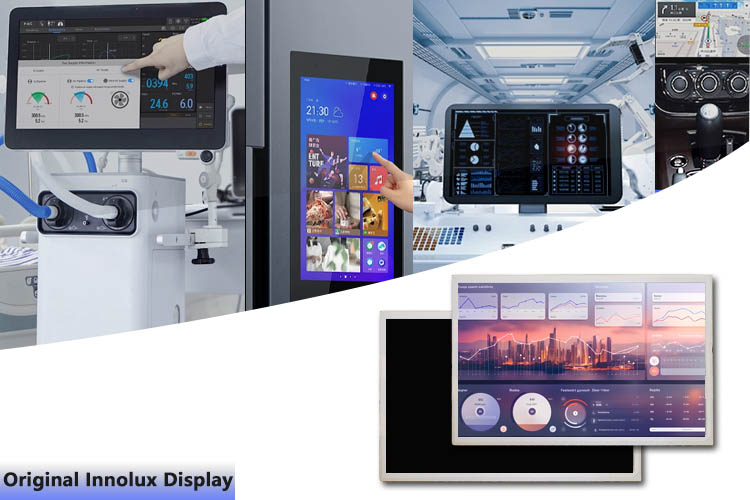

    Applications:

    The INNOLUX G101ICE-LM1 LCD Display Panel can be used in various medical TFT display applications. With its high luminance of 350 nits and IPS viewing direction, the display panel provides clear and accurate image and video quality, making it ideal for medical imaging, patient monitoring, and other medical applications. Additionally, the product is certified with ANSI/AAMI ES60601-1-2, which ensures that the product meets the medical safety standards.

    The INNOLUX G101ICE-LM1 LCD Display Panel can also be used in various industrial LCD applications. With its rugged design and operating temperature range of -10℃~60℃, the display panel can be used in harsh industrial environments. The product's active area of 216.96 * 135.6, contrast ratio of 800, and high luminance of 350 nits make it ideal for outdoor displays, transportation displays, and other industrial applications.


    Support and Services:

    INNOLUX provides technical support and services for their LCD Display products. This includes:

    • Product consulting and selection guidance
    • Product customization and development support
    • Product testing and verification
    • Product repair and maintenance
    • Product training and technical documentation
    • Technical issue troubleshooting and resolution

    INNOLUX strives to provide high-quality technical support and services to ensure customer satisfaction and product success.

    Packing and Shipping:


    Innolux G101ICE-LM1 Packing Details
    Package Box :QuantityWeightBox Size
    28 pcs / box12.0 Kgs435×350×275 mm (L×W×H)
