12.1 inch G121XCE-L02 Innolux LCD Display with 500 nits Luminance 30k LED Life for Smart Medical

Shenzhen Mingqi Display Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 12.1 inch G121XCE-L02 Innolux LCD Display with 500 nits Luminance 30k LED Life for Smart Medical from wholesalers

    Buy cheap 12.1 inch G121XCE-L02 Innolux LCD Display with 500 nits Luminance 30k LED Life for Smart Medical from wholesalers
    • Buy cheap 12.1 inch G121XCE-L02 Innolux LCD Display with 500 nits Luminance 30k LED Life for Smart Medical from wholesalers
    • Buy cheap 12.1 inch G121XCE-L02 Innolux LCD Display with 500 nits Luminance 30k LED Life for Smart Medical from wholesalers
    • Buy cheap 12.1 inch G121XCE-L02 Innolux LCD Display with 500 nits Luminance 30k LED Life for Smart Medical from wholesalers
    • Buy cheap 12.1 inch G121XCE-L02 Innolux LCD Display with 500 nits Luminance 30k LED Life for Smart Medical from wholesalers

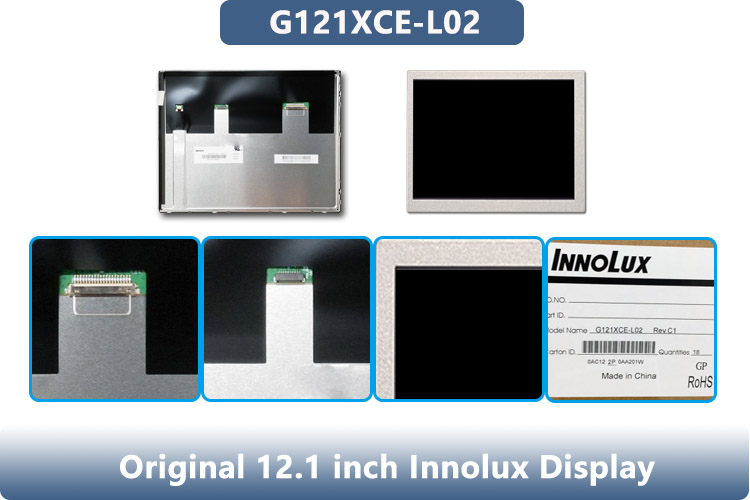

    12.1 inch G121XCE-L02 Innolux LCD Display with 500 nits Luminance 30k LED Life for Smart Medical

    Ask Lasest Price
    Brand Name : INNOLUX
    Model Number : G121XCE-L02
    Certification : ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
    Price : Please contact us for latest price
    Delivery Time : 1~7 working days
    Payment Terms : T/T, L/C, Credit card, PayPal
    Supply Ability : 500,0 pieces per day
    • Product Details
    • Company Profile

    12.1 inch G121XCE-L02 Innolux LCD Display with 500 nits Luminance 30k LED Life for Smart Medical

    Product Information:


    BrandInnolux
    Model P/N G121XCE-L02
    Diagonal Size12.1"
    Panel Typea-Si TFT-LCD, LCM
    Resolution1024(RGB)×768, XGA 105PPI
    Pixel FormatRGB Vertical Stripe
    Active Area245.76(W)×184.32(H) mm
    Bezel Opening249.0(W)×187.5(H) mm
    Outline Dim.260.5(W)×204(H)×8.9(D) mm
    TreatmentAntiglare, Hard coating (3H)
    Luminance500 cd/m² (Typ.)
    Contrast Ratio1000:1 (Typ.) (TM)
    View DirectionSymmetry
    Response Time13/12 (Typ.)(Tr/Td)
    Viewing Angle89/89/89/89 (Typ.)(CR≥10)
    Operating ModeAAS, Normally Black, Transmissive
    Support Color262K/16.7M 72% NTSC
    Light SourceWLED , 30K hours , With LED Driver
    Weight490/510g (Typ./Max.)
    Frame Rate60Hz
    Touch PanelWithout
    Interface TypeLVDS (1 ch, 6/8-bit) , 20 pins Connector
    Power Supply3.3V (Typ.)
    EnvironmentOperating Temperature: -30 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C


    Features:

    • Product Name: 12.1 inch INNOLUX LCD Display
    • Smart Medical application
    • Lcd Display for Military screen
    • Automotive Application

    One of the key features of this military LCD display is its LED lifetime. With a lifespan of 30,000 hours, this display is designed to last for years of continuous use, making it a reliable choice for industrial applications.

    The interface of this industrial TFT LCD is LVDS 20, which provides high-speed data transmission and ensures reliable performance. This makes it ideal for use in applications that require fast and accurate data transfer.

    In addition to its impressive operating capabilities, this military LCD display is also designed to withstand extreme storage temperatures. With a storage temperature range of -40°C to 80°C, this display can be stored safely even in the harshest environments.

    With a resolution of 1024*768, the INNOLUX LCD Display delivers clear and detailed images, making it ideal for use in a wide range of industrial applications. Whether you need a high-quality display for military or commercial use, this industrial TFT LCD from INNOLUX is a reliable and durable choice.


    Applications:


    This Innolux LCD display module can be used in various product application occasions and scenarios, including:

    • Industrial control systems: The G121ICE-L02 module can be used in industrial control systems, such as manufacturing plants, to display critical data and information. Its high-quality display ensures that users can quickly and easily read the information, improving productivity and efficiency.
    • Medical equipment: The module's certification to ANSI/AAMI ES60601-1-2 makes it ideal for use in medical equipment. It can display patient data and information, such as vital signs, making it easy for healthcare professionals to monitor and diagnose patients.
    • Information kiosks: The clear and detailed display of the G121ICE-L02 module makes it ideal for use in information kiosks. It can display maps, directions, and other information, making it easier for users to navigate and find what they need.
    • Retail displays: The module's high-quality display and long LED lifetime make it ideal for use in retail displays. It can display product information, prices, and promotions, attracting customers and increasing sales.


    Support and Services:

    Our technical support and services for the INNOLUX LCD Display product include:

    • Online technical support through our website
    • 24/7 technical support hotline
    • On-site technical support and repair services
    • Warranty service for defective products
    • Customized design and integration services
    • Product training and education services for customers

    Our team of experienced technicians and engineers are dedicated to ensuring the smooth operation and performance of your INNOLUX LCD Display product. Contact us for any technical support or service needs.

    Packing and Shipping:

    Product Packaging:

    • INNOLUX LCD Display
    • User manual
    • HDMI cable
    • Power adapter
    • Remote control (optional)
