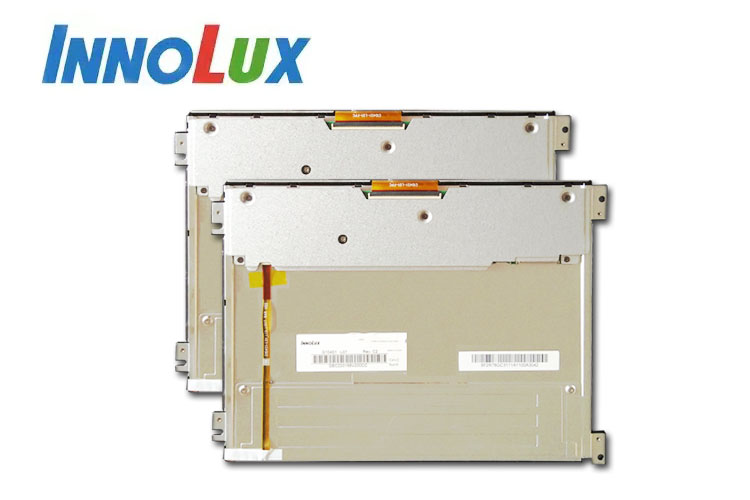

    10.4 inch G104S1-L01 Innolux Screen 800×600 Resolution IPS TFT Display with 400 nits Luminance

    Ask Lasest Price
    Brand Name : INNOLUX
    Model Number : G104S1-L01
    Certification : ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
    Price : Please contact us for latest price
    Delivery Time : 1~7 working days
    Payment Terms : T/T, L/C, Credit card, PayPal
    Supply Ability : 500,0 pieces per day
    • Product Details
    • Company Profile

    10.4 inch G104S1-L01 Innolux Screen 800×600 Resolution IPS TFT Display with 400 nits Luminance

    Product Description:

    BrandChimei Innolux
    Model P/NG104S1-L01
    Diagonal Size10.4"
    Panel Typea-Si TFT-LCD, LCM
    Resolution800(RGB)×600, SVGA 96PPI
    Pixel FormatRGB Vertical Stripe
    Active Area211.2(W)×158.4(H) mm
    Bezel Opening214.8(W)×162.7(H) mm
    Outline Size243(W)×184(H)×7.3(D) mm
    Luminance400 cd/m² (Typ.)
    Viewing Angle80/80/70/70 (Typ.)(CR≥10)
    Good View at-
    Color Depth262K/16.2M 53% NTSC
    Mass355g (Typ.)
    Refresh Rate60Hz
    TreatmentAntiglare, Hard coating (3H)
    Contrast Ratio700 : 1 (Typ.) (TM)
    Response5/11 (Typ.)(Tr/Td) ms
    Work ModeTN, Normally White, Transmissive
    BacklightWLED , 30K hours , With LED Driver
    TouchscreenWithout
    Signal TypeLVDS (1 ch, 6/8-bit) , 20 pins Connector
    Voltage Supply3.3V (Typ.)
    Max. RatingsStorage Temp.: -40 ~ 80 °C Operating Temp.: -20 ~ 70 °C

    Features:

    • Product Name: INNOLUX LCD Display Panel
    • lcd backlight
    • vehicle lcd display
    • Display for smart medical
    • Display for smart manufacturing

    With an interface of LVDS (1 Ch, 6/8-bit) and a 20 pins connector, this LCD display is designed to offer seamless connectivity and compatibility with a wide range of devices. Whether you're using it for industrial automation, medical equipment, or other demanding applications, you can count on this display to deliver consistent and reliable performance.

    In addition to its impressive connectivity and compatibility, this LCD display is also notable for its long LED lifetime. With a lifespan of up to 50,000 hours, you can expect this display to provide years of dependable service. And with a luminance of 400 nits, you'll enjoy clear and vivid images even in bright environments.


    Applications:

    Our INNOLUX panel is designed to be durable and long-lasting, with a LED lifetime of 50,000 hours. The viewing angle of 80/80/70/70 (Typ.)(CR≥10) ensures that the display can be seen clearly from a wide range of angles. The outline dimension of 243(W)×184(H)×7.3(D) mm makes it easy to install in a variety of settings. With a luminance of 400 nits, it is bright enough to be seen in even the brightest environments.

    Our LCD display is suitable for many different occasions and scenarios. In the medical industry, it can be used for patient monitoring and diagnostic equipment. It is also suitable for military applications, where durability and reliability are essential. Other applications include industrial automation, transportation, and gaming.

    Support and Services:

    INNOLUX provides technical support and services for our LCD display products to ensure optimal performance and customer satisfaction. Our technical support team is available to assist with any issues or questions related to our products, including but not limited to:

    • Product installation and setup
    • Troubleshooting and problem-solving
    • Optimization and customization
    • Product maintenance and repair

    In addition to our technical support, we also offer a range of services to enhance the performance and functionality of our LCD display products:

    • Customization and integration services to meet specific application needs
    • Training and education services to help customers maximize the benefits of our products
    • Product updates and upgrades to ensure compatibility with the latest technologies
    • Extended warranty and support services for added peace of mind

    Packing and Shipping:

    Product Packaging:

    • INNOLUX LCD Display
    • Protective foam padding
    • User manual

    Shipping:

    • Ships within 2 business days
    • International shipping available at additional cost
