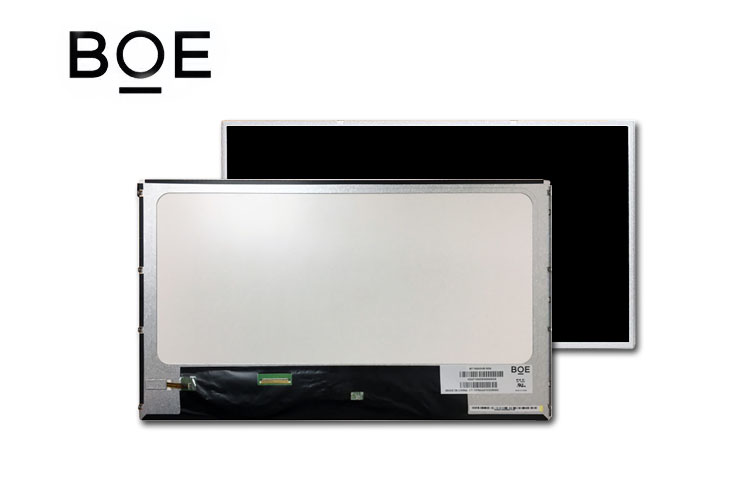

15.6 inch BOE NT156WHM-N50 TFT LCD Resolution 1366*768 TN LCD
Display for Industrial Application
Product Information:
| Brand | BOE |
| Model P/N | NT156WHM-N50 |
| Diagonal Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.232(W)×193.536(H) mm |
| Bezel Opening | - |
| Outline Dim. | 359.5(H)×209.54(V) ×5.5(D) mm |
| Treatment | Glare (Haze 0%) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 12 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 45% NTSC |
| Light Source | WLED [9S3P] , 15K hours , With LED Driver |
| Form Style | Wedge (PCBA Bent, T≥5.2mm) |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit) , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
Features:
One of the best things about this industrial TFT LCD is its outline
dimension of 359.5*209.54*5.5. This makes it compact and easy to
install in various applications, while still offering a large
display screen. The screen size is 15.6 inches, which is perfect
for applications that require a medium-sized display panel.
The viewing angle of this industrial TFT LCD is also impressive,
with an RLUD viewing angle of 45/45/20/40. This allows users to
view the display from different angles without affecting the
quality of the images displayed. The resolution of this industrial
TFT LCD is 1366*768, which is perfect for displaying crisp and
clear images and videos.
The INNOLUX LCD Display is designed to be used as an industrial
display panel, and it offers a range of features that make it ideal
for use in various industrial applications. It is a reliable and
high-quality industrial TFT LCD that is built to withstand tough
conditions and environments.
Another impressive feature of this industrial TFT LCD is its active
area of 344.232*193.536. This offers users a large display area
that is perfect for displaying important information and data.
Whether you are using this industrial TFT LCD for a control panel
or a monitoring system, it is sure to provide you with the
performance and reliability that you need.
Applications:
The NT156WHM-N50 module can be used in various applications,
including laptops, monitors, and industrial equipment. Its slim
outline dimensions of 359.5x209.54x5.5 make it suitable for compact
devices, while its operating temperature range of -0℃~50℃ makes it
resilient in harsh environments. This display's LED lifetime is 15K
hours, ensuring long-term use.
The BOE IPS LCD display is versatile and can be used in different
scenarios. In the office setting, it can be utilized in conference
rooms for presentations or used as a secondary monitor to increase
productivity. It can also be used in the medical field, where its
certification with ANSI/AAMI ES60601-1-2 allows it to be used in
medical equipment. Additionally, the display's high resolution and
wide viewing angle make it an excellent choice for gaming monitors,
providing users with an immersive gaming experience.
Support and Services:
BOE offers comprehensive technical support and services for its LCD
display products to ensure optimal performance and customer
satisfaction. Our technical support team is available to assist
with any issues or questions related to the installation,
operation, and maintenance of our displays.
We also offer a range of services to support our customers
throughout the product lifecycle, including customization and
design services, product testing and validation, and repair and
replacement services. Our goal is to provide a seamless and
reliable experience for our customers, from product selection to
post-sales support.
Packing and Shipping:
Product Packaging:
The BOE LCD Display product will be securely packaged to ensure its
safe delivery to you. The package will include:
- BOE NT156WHM-N50 LCD Display
- Power cable
- HDMI cable
- Instruction manual
Shipping:
We offer free shipping for the BOE LCD Display product to all
locations within the United States. For international orders,
shipping rates will be calculated during checkout. Please allow 3-5
business days for processing and handling before your order is
shipped. Once your order has been shipped, you will receive a
tracking number via email to track your package.
