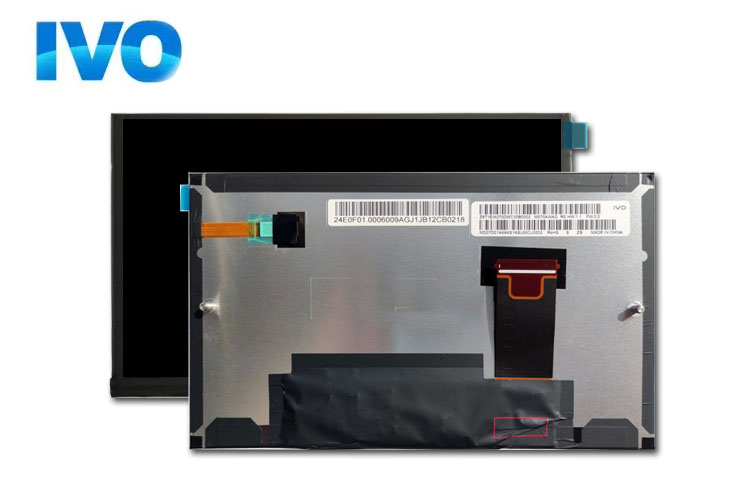

    7 Inch M070AWAD R0 IVO Panel Industrial TFT LCD 1000 Nits High Brightness Display

    Ask Lasest Price
    Brand Name : IVO
    Model Number : M070AWAD R0
    Certification : ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
    Price : Please contact us for latest price
    Delivery Time : 1~7 working days
    Payment Terms : T/T, L/C, Credit card, PayPal
    Supply Ability : 500,0 pieces per day
    • Product Details
    • Company Profile

    7 Inch M070AWAD R0 IVO Panel Industrial TFT LCD 1000 Nits High Brightness Display

    7 inch M070AWAD R0 IVO Industrial TFT LCD 1000 nits High Brightness Display with Resolution 1280*720

    Product Information:

    BrandIVO
    Model P/N M070AWAD R0
    Diagonal Size7.0"
    Panel Typea-Si TFT-LCD, LCM
    Resolution1280(RGB)×720, WXGA 210PPI
    Pixel FormatRGB Vertical Stripe
    Active Area154.752(W)×87.048(H) mm
    Bezel Opening157.752(W)×90.048(H) mm
    Outline Dim.168.152(W)×101.448(H)×8.8(D) mm
    Luminance1000 cd/m² (Min.)
    View DirectionSymmetry
    Viewing Angle85/85/85/85 (Typ.)(CR≥10)
    Support Color16.7M 73% NTSC
    Weight187g (Max.)
    Frame Rate60Hz
    TreatmentHard coating (3H)
    Contrast Ratio800:1 (Typ.) (TM)
    Response Time20 (Max.)(Tr+Td)
    Operating ModeIPS, Normally Black, Transmissive
    Light SourceWLED [10S3P] , 30K hours , W/O Driver
    Designed ForIndustrial; Rugged Industrial; Outdoor Highbrightness; Automotive Display
    Touch PanelWithout
    Interface TypeLVDS (1 ch, 8-bit) 40 pins FPC
    Power Supply3.3V (Typ.)
    EnvironmentOperating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 5.0G (49.0 m/s²)

    Features:

    Measuring 7 inches in size, this IVO LCD display is compact yet delivers outstanding performance. Its operating temperature range of -30 ~85 °C makes it suitable for use in extreme environments. The viewing angle of this display is 80/80/80/80 (RLUD), which means that the image quality remains consistent regardless of the viewing angle.

    Whether you need an LCD monitor for industrial automation, medical equipment, or other applications, the IVO Industrial TFT LCD Display is an excellent choice. Its rugged construction and reliable performance make it ideal for use in demanding environments.

    Features: industrial TFT, military LCD display, TFT display

    Applications:

    The IVO M070AWAD R0 is a high brightness LCD display that is perfect for industrial and automotive applications. It is a TFT LCD display that has a resolution of 1280*720 and a brightness of 1000 nits. The display has been certified by ISO 9241, IEC62341, JEITA CP-3451, ANSI/AAMI ES60601-1-2, and IEC 60068, which ensures that it is safe to use in various applications.

    One of the main applications of the IVO M070AWAD R0 is in vehicle LCD displays. Its high brightness makes it ideal for use in cars, trucks, and other vehicles where the display needs to be visible in bright sunlight. It is also suitable for use in industrial applications where it may be exposed to harsh environments.

    The display has a wide operating temperature range of -30 ~85 °C, which makes it suitable for use in extreme environments. It can be used in outdoor applications where it may be exposed to extreme temperatures or in applications where it may be subject to vibration or shock.


    Support and Services:

    • Technical support via phone, email, or live chat
    • Onsite support for complex issues
    • Remote diagnostics and troubleshooting
    • Repair and maintenance services
    • Product training and user manuals

    Our goal is to ensure that your IVO LCD Display product delivers the highest level of performance and reliability. Contact us today to learn more about our technical support and services.

    Packing and Shipping:

    Product Packaging:

    • IVO LCD Display
    • Power cord
    • HDMI cable
    • Instruction manual

    Quality 7 Inch M070AWAD R0 IVO Panel Industrial TFT LCD 1000 Nits High Brightness Display for sale
