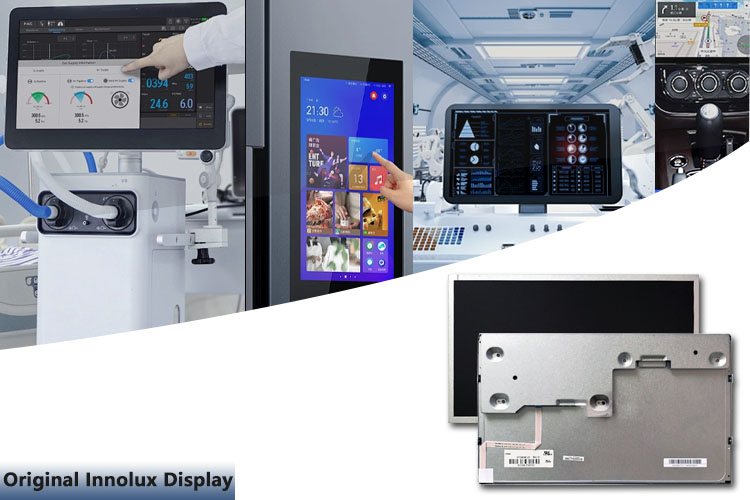

    1366*768 15.6 Inch Lcd Panel INNOLUX G156BGE-L01 LVDS LCD Display

    Ask Lasest Price
    Brand Name : INNOLUX
    Model Number : G156BGE-L01
    Certification : ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
    Price : Please contact us for latest price
    Delivery Time : 1~7 working days
    Payment Terms : T/T, L/C, Credit card, PayPal
    Supply Ability : 500,0 pieces per day
    • Product Details
    • Company Profile

    1366*768 15.6 Inch Lcd Panel INNOLUX G156BGE-L01 LVDS LCD Display

    1366*768 Resolution 15.6 inch INNOLUX G156BGE-L01 LCD Display 80/80/80/80 Viewing Angle LVDS Screen

    Product Information:


    BrandInnolux
    Model P/N G156BGE-L01
    Diagonal Size15.6"
    Panel Typea-Si TFT-LCD, LCM
    Resolution1366(RGB)×768, WXGA 100PPI
    Pixel FormatRGB Vertical Stripe
    Active Area344.232(W)×193.536(H) mm
    Bezel Opening347.53(W)×196.84(H) mm
    Outline Dim.363.8(H)×215.92(V) ×17.35(D) mm
    TreatmentAntiglare, Hard coating (3H)
    Luminance300 cd/m² (Typ.)
    Contrast Ratio500:1 (Typ.) (TM)
    View Direction-
    Response Time3/7 (Typ.)(Tr/Td)
    Viewing Angle80/80/80/80 (Typ.)(CR≥10)
    Operating ModeTN, Normally White, Transmissive
    Support Color16.7M 65% NTSC
    Light SourceWLED , 50K hours , With LED Driver
    Weight1.19/1.25Kgs (Typ./Max.)
    Frame Rate60Hz
    Touch PanelWithout
    Interface TypeLVDS (1 ch, 8-bit) , 30 pins Connector
    Power Supply5.0V (Typ.)
    EnvironmentOperating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C


    Features:

    This INNOLUX LCD Display is a high-quality TFT LCD panel with a contrast ratio of 500. It has a wide viewing angle of 80/80/80/80 (RLUD) and an active area of 344.2 * 193.5. The resolution of this LCD display is 1366*768. INNOLUX is a renowned lcd display manufacturer that produces mil spec lcd displays.

    The INNOLUX LCD Display boasts an outline dimension of 363.8*215.9*16.8, making it a compact and space-saving option for your industrial display needs. Its IPS viewing direction ensures a wide viewing angle, making it easy to share information with multiple people at once.

    With a luminance of 300 nits, this industrial lcd provides bright and vivid colors, ensuring that information is displayed clearly in various lighting conditions. Its LED lifetime of 50K hours ensures long-lasting performance, making it a reliable choice for your industrial touch screen monitor needs.

    Designed to withstand tough conditions, the INNOLUX LCD Display has an operating temperature range of -0℃~60℃. This makes it suitable for use in various industrial environments, ensuring it can perform well even in extreme temperatures.

    Overall, the INNOLUX LCD Display is an excellent choice for anyone in need of a reliable, high-quality industrial lcd. Sourced from a reputable display panel factory, you can trust that this display will provide clear and crisp visuals for your industrial touch screen monitor needs.

    Applications:

    This industrial TFT LCD display is suitable for various product application occasions and scenarios. It can be used in medical equipment, aerospace, military, marine, and other industrial fields. The display provides a clear and bright image, making it ideal for applications that require precision and accuracy.
    The INNOLUX G156BGE-L01 has an active area of 344.2 * 193.5 and an outline dimension of 363.8*215.9*16.8. It has a luminance of 300 nits and a viewing direction of IPS. The interface is LVDS 30, which makes it easy to connect to other devices.
    If you're looking for an industrial TFT LCD display that provides high-quality and reliable performance, then the INNOLUX G156BGE-L01 is an excellent choice. Contact us today to get the latest price and learn more about this product.


    Support and Services:

    Our INNOLUX LCD Display product technical support and services include:
    - Assistance with product installation and setup
    - Troubleshooting and technical issue resolution
    - Firmware and software updates
    - Repair and replacement services
    - Product training and education
    - Technical documentation and resources
    - Warranty and support agreements

    Packing and Shipping:

    Product Packaging:

    • INNOLUX LCD Display
    • Protective foam padding
    • User manual
    • Power cable

    Shipping:

    • Ships within 2-3 business days
    • Shipped via UPS ,Fedex or DHL
    • Tracking number provided upon shipment
    • Shipping cost calculated at checkout
