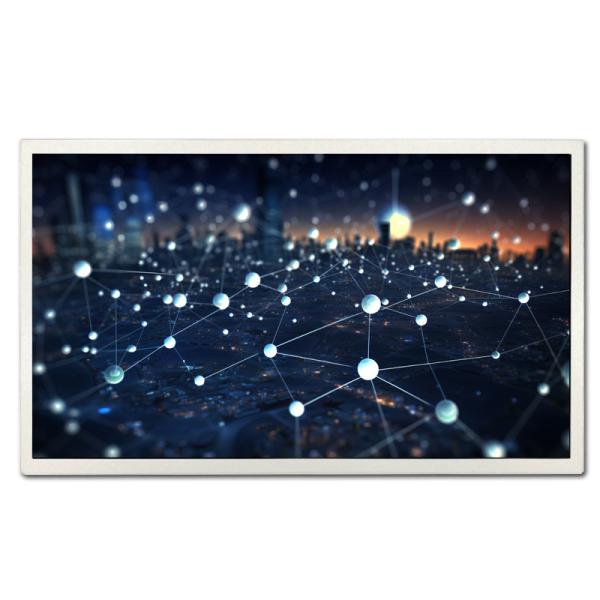

15.6 inch CHIMEI G156HCE-L01 LCD Display 1920*1080 Resolution -30 ~
85 °C Wide Temperature Display
Product Information:
| Chimei Innolux G156HCE-L01 Application Details |
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | G156HCE-L01 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ‐ |
| Panel Size | 15.6” | Designed For | Industrial |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -40 ~ 90 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²;) |
| Features : | Wide Temperature,WLED Backlight, Life>=50K hours,With LED
Driver, Matte |
| Chimei Innolux G156HCE-L01 Optical Details |
| Basic Information : | Luminance | 450 cd/m²(Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 13/12 (Typ.)(Tr/Td) ms |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | AAS, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Display Colors | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Variation | 1.43 (Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 93% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 75% coverage |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Chimei Innolux G156HCE-L01 Mechanical Details |
| Pixel Features : | Number of Pixel | 1920(RGB)*1080, FHD | Arrangement | RGB Vertical Stripe |
| Dot Pitch | 0.05975*0.17925 mm (H*V) | Pixel Pitch | 0.17925*0.17925 mm (H*V) [141PPI] |
| Physical Size : | Active Viewing(mm) | 344.16*193.59 mm (H*V) | Bezel Area (mm) | 347.06*196.49 mm (H*V) |
| Outline Dim.(mm) | 363.8*215.98 mm (H*V) | Depth(mm) | 9.3±0.3 |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Fixation : | Side mounting holes (4 pcs) on left, right bezel |
| Other Spec : | Weight | 1.06/1.1Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
Features:
The INNOLUX LCD Display features an IPS viewing direction,
providing excellent color reproduction and wide viewing angles.
This makes it ideal for use in applications where accurate color
representation is essential, such as medical imaging and industrial
monitoring systems.
In addition to its robust design and high-quality display, the
INNOLUX LCD Display also boasts a storage temperature range of -40
~ 90 °C, ensuring that it is able to withstand extreme temperatures
without compromising performance. This makes it an ideal choice for
use in a wide range of applications, including those that require
reliable performance in harsh environments.
With a contrast ratio of 800, the INNOLUX LCD Display delivers
crisp, clear images that are easy to read and interpret. This makes
it an ideal choice for use in applications that require high levels
of detail and clarity, such as medical imaging and industrial
monitoring systems.
Finally, the INNOLUX LCD Display boasts an impressive LED lifetime
of 50,000 hours, ensuring that it is a reliable and long-lasting
solution for your industrial TFT LCD needs. Whether you are looking
for a high-quality medical TFT display or a robust industrial TFT
module, the INNOLUX LCD Display is the perfect choice.
Applications:
Some of the typical scenarios for using the INNOLUX G156HCE-L01
include:
- Industrial automation systems - The display is ideal for use in
factory automation systems, process control systems, and other
industrial applications that require reliable and durable displays.
- Military and defense applications - The display's mil-spec
construction and robust design make it suitable for use in military
and defense applications, including ruggedized laptops and field
communication systems.
- Medical equipment - The display is certified to meet the ANSI/AAMI
ES60601-1-2 standard, which makes it suitable for use in medical
equipment such as patient monitoring systems, diagnostic equipment,
and surgical displays.
- Outdoor advertising and digital signage - The display's high
brightness and wide viewing angles make it ideal for use in outdoor
advertising and digital signage applications.
Support and Services:
Our INNOLUX LCD Display products come with comprehensive technical
support and services. Our team of experts is available to assist
with any product-related questions or issues that may arise.
Additionally, we offer the following services:
- Customization services to meet specific customer requirements
- Repair and maintenance services for all INNOLUX LCD Display
products
- On-site installation and training services for large-scale
projects
- Product lifecycle management to ensure continuous product
availability and support
Packing and Shipping:
| Chimei Innolux G156HCE-L01 Carton Details |
| Package Box : | Amount | Weight | Size (L*W*H) |
| 18pcs / box | 15.6 Kgs | 465*362*314 mm |
Product Packaging:
The INNOLUX LCD Display product will be carefully packaged in a
sturdy cardboard box to ensure safe delivery. The box will be
labeled with the product name, description, and handling
instructions.
Shipping:
The product will be shipped via a reputable shipping company, such
as FedEx or UPS, to ensure timely and secure delivery. Shipping
costs and estimated delivery times will be provided at the time of
purchase. Customers will receive a tracking number to monitor the
progress of their shipment.
