15.6In INNOLUX LCD Screen Full HD Resolution IPS TFT LCD Display

Ask Lasest Price
Brand Name :	INNOLUX
Model Number :	G156HCE-LN1
Certification :	ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
Price :	Please contact us for latest price
Delivery Time :	1~7 working days
Payment Terms :	T/T, L/C, Credit card, PayPal
Supply Ability :	500,0 pieces per day

Add to Cart

Product Details
Company Profile

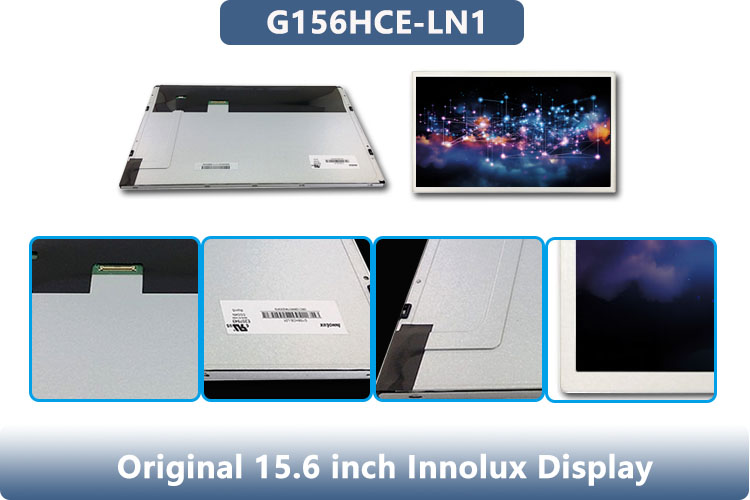

15.6In INNOLUX LCD Screen Full HD Resolution IPS TFT LCD Display

15.6 inch INNOLUX LCD Screen with Wide Viewing Angle Full HD Resolution IPS TFT LCD Display

Product Description:

Innolux G156HCE-LN1 Application Details
Basic Information :	Brand	INNOLUX	Model	G156HCE-LN1
	Type	LCM a-Si TFT-LCD	Used For	Industrial,Gaming
	Screen Size	15.6"
Environment :	Storage Temp.	-20 ~~ 70 °C	Operating Temp.	0 ~~ 60 °C
Environment :	RoHS	RoHS	Vibration	1.5G (14.7 m/s²)
Typical Features :	WLED Backlight,Life>=50K hours,With LED Driver,Matte
Innolux G156HCE-LN1 Mechanical Details
Pixel Features :	Resolution	1920(RGB)*1080, FHD	Dot Pitch(mm)	0.059750.17925 (HV)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.179250.17925 (HV) [141PPI]
Mechanical Size :	Active Area(mm)	344.16(H) *193.59(V)	Bezel Area(mm)	347.06(H) *196.49(V)
Mechanical Size :	Outline Dim.(mm)	363.8(H) *215.98(V)	Depth(mm)	9.3±0.3
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	16:9 (H:V)	Orientation	Landscape type
Mounting :	Side mounting holes (4 pcs) on left, right bezel
Other Spec :	Weight	1.06/1.10Kgs (Typ./Max.)	Treatment	Antiglare, Hard coating (3H)
Innolux G156HCE-LN1 Optical Details
Basic Information :	Luminance(cd/m²)	350 (Typ.)	Contrast Ratio	800:1 (Typ.) (Transmissive)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Display Mode	AAS, Normally Black, Transmissive
	Best View on	Symmetry	Response(ms)	14/11 (Typ.)(Tr/Td)
Color Performance :	White Coordinate	X:0.313; Y:0.329	Display Colors	16.7M (8-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.43 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	73%	sRGB	93% coverage
	Adobe RGB	72% coverage	DCI-P3	75% coverage
	Rec.2020	54% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Features:

One of the key features of this display is its long LED lifetime of 50K hours, which ensures that it will last for many years even under heavy use. The display also boasts an EDP display interface, which enables it to be easily connected to a range of devices.

With dimensions of 363.8*215.9*9.3, this display is both compact and lightweight, making it easy to transport and install. Its rugged construction means that it is able to withstand harsh weather conditions and extreme temperatures, making it ideal for use in a wide range of environments.

In summary, the INNOLUX LCD Display is a high-quality military lcd display that offers exceptional performance and durability. Its high brightness, long LED lifetime, and EDP display interface make it an excellent choice for outdoor applications, while its compact size and rugged construction make it ideal for use in a wide range of environments. Whether you are looking for a display for military applications or for outdoor advertising, the INNOLUX LCD Display is an excellent choice.

Applications:

This LCD display is ideal for use in medical applications due to its high resolution of 1920*1080 and its ability to operate in temperatures ranging from -20℃ to 70℃. This makes it suitable for use in medical tft displays where quality and reliability are of utmost importance. Additionally, the viewing angle of 89/89/89/89 ensures that images are clear and visible from all angles, making it ideal for use in medical equipment where multiple people may need to view the screen at once.

The INNOLUX G156HCE-LN1 LCD display is also suitable for use in military applications due to its rugged design and ability to withstand harsh conditions. The LED lifetime of 50,000 hours ensures that this product will last a long time and provide reliable performance even in the toughest environments. The viewing angle of 89/89/89/89 ensures that images are clear and visible from all angles, making it ideal for use in military LCD displays where multiple people may need to view the screen at once.

Support and Services:

Our INNOLUX LCD Display product technical support and services include:

Product installation and configuration assistance
Troubleshooting and diagnosis of technical issues
Repair and replacement services for defective products
Product updates and firmware upgrades
Technical training and resources for our customers

We are committed to providing excellent technical support and services to ensure the optimal performance and longevity of our INNOLUX LCD Display products.

Packing and Shipping:

Innolux G156HCE-LN1 Packing Details
Package Box :	Quantity	Weight	Box Size
Package Box :	18 pcs / box	13.2 Kgs	465362314 mm (LWH)

Product Packaging:

The INNOLUX LCD Display will be carefully packed in a sturdy cardboard box with ample padding to prevent any damage during shipping. The box will be labeled with the product name and specifications for easy identification.

Shipping:

We offer free standard shipping for the INNOLUX LCD Display to the continental United States. For international shipping, additional fees may apply. We use reliable shipping carriers to ensure timely delivery of your product. Once your order is processed, you will receive a tracking number via email to monitor your shipment.
