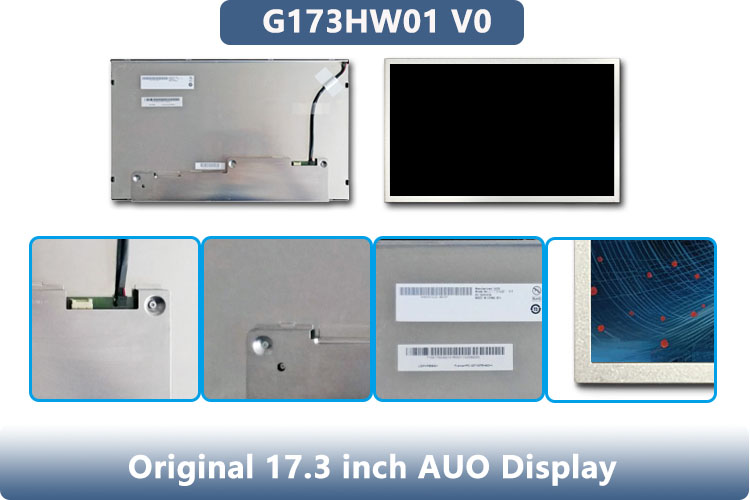

17.3 inch G173HW01 V0 AUO LCD Panel 1920x1080 High Resolution Display with LVDS 30 Interface.

Product Description:

One of our most popular products is the AUO Display Panel, which boasts impressive specifications and features that make it a favorite among customers.

The outline of the AUO display panel is 403×240×13 mm, making it a compact and space-saving option for various applications. Its LVDS 30 interface ensures smooth and efficient data transmission, while its impressive viewing angles of 80/80/60/80 (RLUD) guarantee clear and vivid images from any direction.

Whether you're using the panel indoors or outdoors, it can withstand a wide range of temperatures, with an operating temperature range of -0℃ to 70℃. This makes it a versatile option for various industries that require displays that can perform in different environments.

In addition, the AUO Display Panel boasts a high contrast ratio of 600, which means that it can display deep blacks and bright whites with great accuracy. This makes it an excellent choice for applications that require a high level of detail and color accuracy, such as medical imaging, gaming, and graphic design.

Features:

• TFT lcd display module
• Laptop display
• TN display
  • Industrial display
• AUO screen
• Product Description: AUO TFT-LCD Panel is a high brightness display manufactured by a leading lcd company.

Technical Parameters:

AUO G173HW01 V0 Optical Details
Basic Information :	Luminance	400cd/m² (Typ.)	Contrast Ratio	600:1 (Typ.) (Transmissive)
	Good View at	-	Response Speed	37/3 (Typ.)(Tr/Td) (ms)
	Viewing Angle	80/80/60/80 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.300; Wy:0.310	Support Color	16.7M (6-bit + Hi-FRC)
	Color Temperature	7525K	White Variation	1.25/1.33 (Typ./Max.)(13points)
1931 Color Gamlt :	NTSC Ratio	72%	sRGB	93% coverage
	Adobe RGB	72% coverage	DCI-P3	75% coverage
	Rec.2020	54% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Other Spec :	Weight	860g (Typ.)	Treatment	Antiglare, Hard coating (3H), Reflection 4.3% (Typ.)
AUO G173HW01 V0 Mechanical Details
Pixel Features :	Number of Pixel	1920(RGB)×1920	Arrangement	RGB Vertical Stripe
	Dot Pitch(W×H)	0.0663×0.1989 mm	Pixel Pitch(W×H)	0.1989×0.1989 mm [127PPI]
Physical Size :	Active Viewing(mm)	381.888(W)×214.812(H) mm	Outline Dim.(mm)	403(W)×240(H) mm
	Bezel Area	385.09(W)×218.01(H) mm	Outline Depth	12.5±0.5 mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
	Aspect Ratio	16:9(H:V)	Orientation	Landscape type
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight	1.08Kgs (Typ.)	Surface	Glare (Haze 0%), Hard coating (3H)
	Rec.2020	47% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Applications:

With a minimum order quantity of just one piece, this AUO LCD Monitor Display Panel is perfect for a wide range of applications. Its LVDS 30 interface and TN viewing direction make it ideal for use in medical equipment, industrial automation, gaming machines, and more.

The AUO Flat Panel Display offers a contrast ratio of 600, ensuring that images and text are sharp and clear.

The AUO Flat Panel Display is a versatile and reliable choice for a wide range of applications. Whether you need a panel lvds for your medical equipment or an AUO LCD Monitor Display Panel for your industrial automation needs, this product is sure to meet your requirements. Contact us today for the latest pricing and to place your order.

Support and Services:

Our Product Technical Support and Services for AUO Display Panel include:

• 24/7 technical support hotline
• On-site technical support
• Repair and maintenance services
• Product training and education
• Customized solutions and consulting services
• Product warranty and replacement services

We are committed to providing the highest level of support and service to our customers. Please feel free to contact us for any questions or assistance.

Packing and Shipping:

Product Packaging:

The AUO Display Panel product will be securely packed in a cardboard box with foam padding to protect it from any damage during transit. The box will also include the necessary accessories such as cables and installation guide.

Shipping:

The product will be shipped via a reputable courier service to ensure timely and safe delivery. Customers will be provided with a tracking number to track their shipment. Shipping times may vary depending on the destination, however, we strive to deliver products within the estimated delivery time frame.

AUO G173HW01 V0 Packing Details
Package Box :	Quantity	Weight	Box Size
	10 pcs / box	-	524×321×360 mm (L×W×H)
