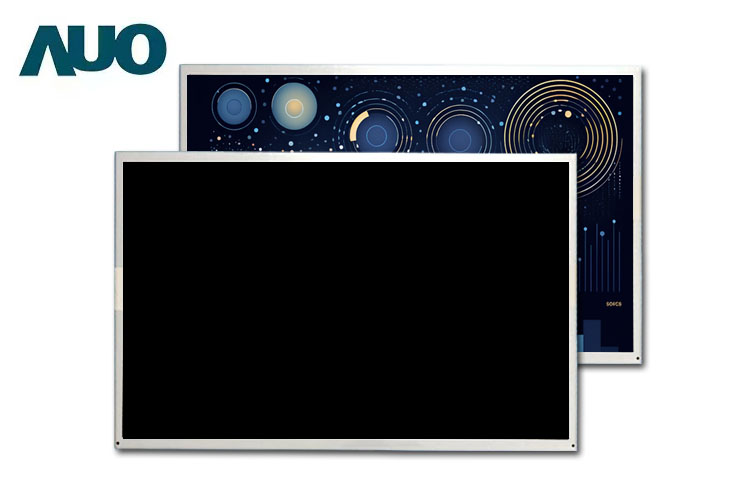

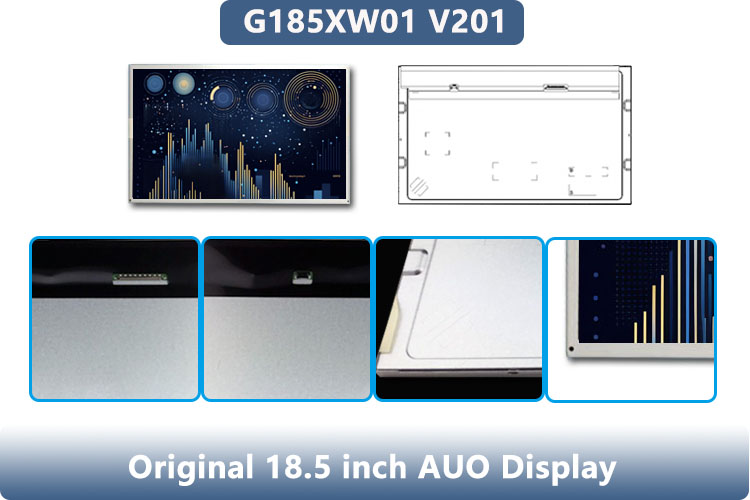

18.5 inch AUO G185XW01 V201 IPS Display Panel 1366*768 Resolution
With LVDS 30 Interface
Product Description:
The panel features an LVDS 30 interface, which ensures
compatibility with a wide range of devices, including desktop
computers, laptops, and media players. The viewing angle for the
panel is 85/85/80/80 RLUD, which ensures that the display is
viewable from a wide range of angles.
The AUO Display Panel has an outline dimension of 430.4×254.7×11.1,
making it compatible with a wide range of display cases. The
panel's slim profile ensures that it can be easily mounted in a
variety of locations. The panel also boasts a high luminance of 450
nits, ensuring that the display is bright and clear.
The AUO Display Panel is ideal for use in a range of applications,
including digital signage, point-of-sale displays, and public
information displays. It is also suitable for use in industrial
applications, thanks to its wide storage temperature range.
Overall, the AUO Display Panel is a top-of-the-line rlcd display
that offers a high-quality viewing experience. With its wide range
of features and compatibility with a range of devices, it is one of
the best auo displays on the market.
Features:
- Ips display
- Lcd display panel
- For industrial screens
- car lcd
- Auo lcd
- Lvds panel
AUO LCD Panel, ips display panel, ips display panel
Technical Parameters:
| Manufacturer | AUO |
| Model Name | G185XW01 V201 |
| Screen Size | 18.5 inch |
| Pixel Number | 1366(RGB)×768 , WXGA |
| Active Area(mm) | 409.8 (H) x 230.4 (V) |
| Pixel Pitch(um) | 300 (per one triad) × 300 |
| Treatment | Anti-Glare , 3H |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.) |
| Response | 3.5/1.5 ms |
| Work Mode | TN , Normally white , Transmissive |
| Color Depth | 16.7M , 70% NTSC |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | 1.44Kgs |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 8-bit) , 30 pins |
| Voltage Supply | +5.0 V |
| Max. Ratings | Storage Temp.: -20 ~ +60 (°C) |
| Operating Temp.: 0 ~ +60 (°C) |
| Package | AUO original package; |
| 8 pcs /ctn; |
| weight : 15.0Kgs; |
| size : 520(L) x 280(W) x 355(H)mm |
Applications:
An AUO TFT-LCD Panel, the G185XW01 V201 model, is an ideal product
for various industry display applications.
The G185XW01 V201 model has a contrast ratio of 1000 and a
resolution of 1366*768, providing clear and sharp visuals. The
active area of the panel is 409.8×230.4, and the luminance(nits) is
450, making it an ideal fit for a range of display applications,
including medical equipment, gaming machines, and industrial
automation equipment.
In conclusion, the G185XW01 V201 is the perfect AUO TFT-LCD Panel
for industry display applications. As a distributor LCD panels, we
can offer you this product with the highest quality and standards,
ensuring it meets all your display needs.
