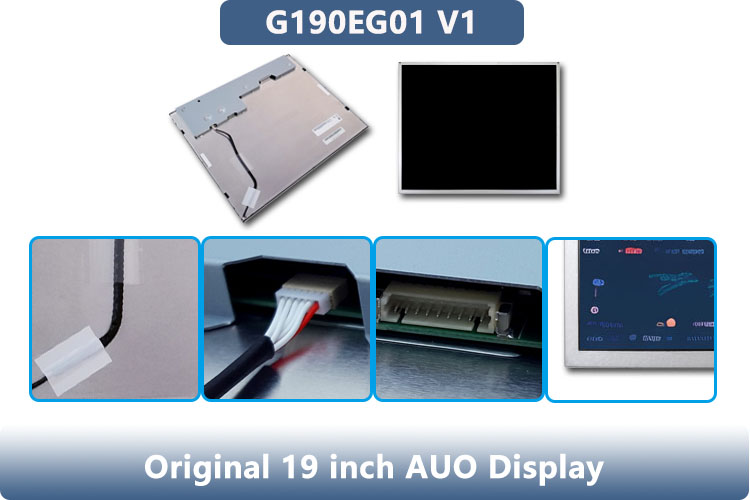

19 inch G190EG01 V1 AUO Display Panel Industrial Lcd Screen with
1280×1024 Pixels
Product Description:
One of the key features of this display is its long LED Lifetime,
which is rated at 50,000 hours. This means that users can rely on
the AUO Display Panel to provide bright and consistent performance
for years to come, even with heavy use.
In addition, the AUO Display Panel is designed to operate in a wide
range of temperatures. It can be stored in temperatures as low as
-20℃, making it suitable for use in cold environments. It can also
operate in temperatures up to 60℃, ensuring that it can handle even
the hottest environments.
The Active Area of this display is 376.32×301.056, which provides
ample space for users to see their content clearly. The display is
also designed to be easy to interface with, thanks to its LVDS 30
interface. This allows users to connect the display to their
systems quickly and easily, without the need for complex adapters
or connectors.
Features:
- TFT panel
- Industrial lcd display
- Military lcd display
- Vehicle lcd display
- Medical tft display
- Viewing Direction: TN
- Interface: LVDS 30
Technical Parameters:
| AUO G190EG01 V1 Optical Details |
| Basic Information : | Luminance | 350cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 3.6/1.4 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 94% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 75% coverage |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| AUO G190EG01 V1 Mechanical Details |
| Pixel Features : | Number of Pixel | 1280(RGB)×1024 [SXGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.098×0.294 mm | Pixel Pitch(W×H) | 0.294×0.294 mm [86PPI] |
| Physical Size : | Active Viewing(mm) | 376.32(W)×301.056(H) mm | Outline Dim.(mm) | 396×324 mm (H×V) |
| Bezel Area | 380.32(W)×305.06(H) mm | Outline Depth | 918.3 (Max.) mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 5:4(H:V) | Orientation | Landscape type |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Other Features : | Weight | 1.67Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
This square LCD display is manufactured by AUO, a leading panel
display company producing high-quality liquid crystal displays.
Applications:
Featuring a resolution of 1280×1024 and a viewing angle of
85/85/80/80 (RLUD), the AUO G185XW01 V201 display panel is perfect
for a wide range of applications. Whether you need a high
brightness display for outdoor use, or a reliable LVDS display for
medical equipment, this display panel is the perfect choice.
hether you are looking for an industry display for use in
manufacturing, healthcare, or any other industry, the AUO Display
Panel is an excellent choice. With its reliable performance, long
lifespan, and easy-to-use interface, it is the perfect choice for
customers who demand the best. So, if you are looking for a
high-quality LVDS display that can deliver exceptional performance,
look no further than the AUO Display Panel.
Support and Services:
Our AUO Display Panel product comes with comprehensive technical
support and services to ensure seamless integration and optimal
performance in various applications. Our team of experts is
dedicated to providing timely and effective support to help you
overcome any technical challenges you may encounter when using our
products.
Our technical support includes:
- Product installation guidance and troubleshooting
- Product usage consultation and optimization
- Software and firmware updates
- Warranty and repair services
In addition, we offer customized services to meet specific customer
needs, including:
- Design-in support and customization
- Product lifecycle management and planning
- Supply chain management and logistics
- Environmental compliance and sustainability support
Our goal is to deliver the best possible support and services to
help you achieve your business objectives and maximize your return
on investment with our AUO Display Panel product.
Packing and Shipping:
| AUO G190EG01 V1 Packing Details |
| Package Box : | Quantity | Weight | Box Size |
| 6 pcs / box | 16.5 Kgs (Max.) | 476×274×413 mm (L×W×H) |
Product Packaging
- The AUO Display Panel is carefully packaged in a sturdy cardboard
box to ensure safe delivery.
- The display panel is wrapped in anti-static material to prevent any
damage during transportation.
- All necessary documentation and accessories are included in the
package.
Shipping
- The AUO Display Panel is shipped via a reliable carrier service.
- Shipping options include standard ground, expedited, or overnight
delivery.
- Customers will receive a tracking number to monitor the progress of
their shipment.
- International shipping is available for an additional fee.
