    21.5 Inch Industrial Lcd Display G215HAN01.2 AUO Display Panel Wide Viewing Angle

    Ask Lasest Price
    Brand Name : AUO
    Model Number : G215HAN01.2
    Certification : ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
    Price : Please contact us for latest price
    Delivery Time : 1~7 working days
    Payment Terms : T/T, L/C, Credit card, PayPal
    Supply Ability : 500,0 pieces per day
    • Product Details
    • Company Profile

    21.5 Inch Industrial Lcd Display G215HAN01.2 AUO Display Panel Wide Viewing Angle

    21.5 inch G215HAN01.2 AUO Display Panel with Wide Viewing Angle for Industrial Screens

    Product Description:

    The display panel has a viewing angle of 89/89/89/89 (RLUD), which means that you can view the display from any angle without any visible distortion or color shift. This makes it an ideal choice for a wide range of applications, including gaming, multimedia, and graphic design.
    The AUO Display Panel is designed to operate in a wide temperature range, from -20℃ to 60℃, making it suitable for use in harsh environments. It is also highly durable and can withstand shocks and vibrations, which makes it an ideal choice for industrial and automotive applications.
    The display panel features an LVDS (Low Voltage Differential Signaling) interface with 30 pins, which enables high-speed data transmission and ensures a stable and reliable connection. This makes it easy to integrate into different systems and devices, including laptops, tablets, and monitors.

    Features:

    • Auo tft display
    • Interface: LVDS 30
    • Lvds lcd panel
    • Ips tft lcd

    This is an AUO LCD Display panel with an LVDS interface , designed for use in a variety of applications. With a luminance of 350 nits , it provides clear and bright images in a range of lighting conditions. The active area measures 476.064×267.786 , and the viewing angle is 89/89/89/89 . This TFT Display panel is engineered to perform well in temperatures ranging from -0℃ to 60℃.

    Technical Parameters:

    AUO G215HAN01.2 Optical Details
    Pixel Features :Pixel Format1920(RGB)×1080 [FHD]Dot Pitch0.08265×0.24795 mm (H×V)
    ConfigurationRGB Vertical StripePixel Pitch0.24795×0.24795 mm (H×V) [102PPI]
    Mechanical Size :Display Area476.064×267.786 mm (H×V)Bezel Area479.8×271.3 mm (H×V)
    Outline Dim.497.6×292.2 mm (H×V)Outline Depth10.5±0.5 mm
    Outline Features :Form FactorFlat RectangleOrientationLandscape type
    Aspect Ratio16:9 (H:V)Shape Style-
    Holes & Brackets :Side mounting holes (4-M3) on left, right bezel
    Other Features :Weight1.74Kgs (Typ.)SurfaceAntiglare, Hard coating (3H)
    AUO G215HAN01.2 Mechanical Details
    Basic Information :Brightness350 cd/m² (Typ.)Contrast Ratio1000:1 (Typ.) (Transmissive)
    Viewing Angle89/89/89/89 (Typ.)(CR≥10)Optical ModeAHVA, Normally Black, Transmissive
    Viewing DirectionSymmetryResponse Time12/10 (Typ.)(Tr/Td) (ms)
    Color Performance :ChromaticityWx:0.313; Wy:0.329Color Numbers16.7M (6-bit + Hi-FRC)
    Color Temperature6485KWhite Uniformity1.25/1.33 (Typ./Max.)(9 points)
    1931 Color Gamlt :NTSC Ratio75%sRGB97% coverage
    Adobe RGB76% coverageDCI-P378% coverage
    Rec.202056% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    Applications:

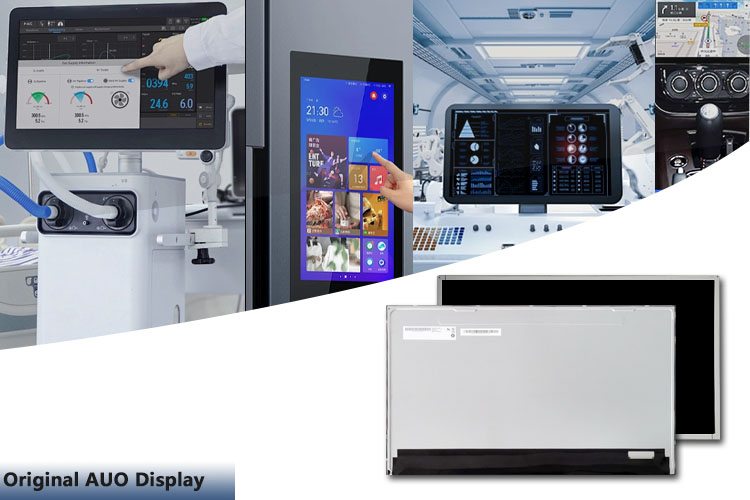

    Applications for the AUO Display Panel G215HAN01.2 range from gaming monitors, medical devices, industrial automation, and more. Its LVDS panel makes it compatible with a wide range of devices. The display is ideal for use in scenarios where high image quality is essential.
