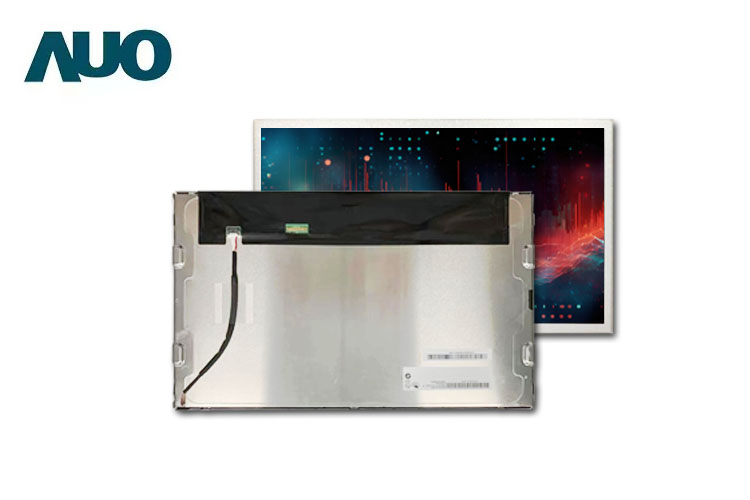

15.6 inch IPS Display G156HAN02.0 AUO Liquid Crystal Display Panel with EDP 30 Interface

Product Description:

The AUO LCD Monitor Display Panel offers a Contrast Ratio of 1000, which ensures that your images and videos display in stunning clarity. Its size of 15.6 inches makes it the perfect size for both personal and professional use. With a Resolution of 1920×1080, the AUO LCD Monitor Display Panel is perfect for those who want to take their display game to the next level. Whether you're using it for work or play, this ips display panel will exceed your expectations. With its high Contrast Ratio, you can expect your images and videos to pop like never before.

Features:

• Product Name: AUO Display Panel
• AUO Flat Panel Display,
• Industry display
• Automotive lcd display
• Military lcd
• IPS tft lcd display
• igh brightness lcd display

Technical Parameters:

AUO G156HAN02.0 Optical Details
Basic Information :	Luminance	500cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	25 (Typ.)(Tr+Td) (ms)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	AHVA, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	16.2M (6-bit + FRC)
	Color Temperature	6485K	White Variation	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	75%	sRGB	98% coverage
	Adobe RGB	77% coverage	DCI-P3	78% coverage
	Rec.2020	56% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
AUO G156HAN02.0 Mechanical Details
Pixel Features :	Number of Pixel	1920(RGB)×1080 [FHD]	Arrangement	RGB Vertical Stripe
	Dot Pitch(W×H)	0.05975×0.17925 mm	Pixel Pitch(W×H)	0.17925×0.17925 mm [141PPI]
Physical Size :	Active Viewing(mm)	344.16(W)×193.59(H) mm	Outline Dim.(mm)	363.8×215.9 mm (H×V)
	Bezel Area(mm)	347.06×196.49 mm (H×V)	Depth(mm)	8.8±0.5 mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
	Aspect Ratio	16:9 (H:V)	Orientation	Landscape type
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight	600/660g (Typ./Max.) (Typ./Max.)	Treatment	Antiglare, Hard coating (3H)

Applications:

The AUO LCD Monitor Display Panel is suitable for a wide range of applications and scenarios, making it a versatile choice for businesses in various industries.

It also can be used in healthcare settings such as hospitals and clinics, in industrial environments where rugged displays are required, as well as for information and entertainment displays in retail settings. Whatever your business needs may be, the AUO Industrial Liquid Crystal Display Panel can provide a reliable and high-quality display solution.

Support and Services:

The AUO Display Panel product offers comprehensive technical support and services to ensure the optimal performance of the product. Our team of experienced professionals is available to answer any questions and provide guidance on installation, troubleshooting, and maintenance. We also offer software and firmware updates to ensure the latest features and functionality are available to our customers. In addition, we provide repair and replacement services to address any issues that may arise during the product's lifespan. Our goal is to provide the highest level of support and service to our customers and ensure their satisfaction with our product.

Packing and Shipping:

The AUO Display Panel product will be packaged safely and securely to ensure that it arrives to you in pristine condition. The panel will be wrapped in protective materials and placed in a sturdy box to prevent any damage during transport. The packaging will also include instructions for handling and installing the panel.

Shipping:

Our shipping process is fast and reliable. Once your order has been processed and the payment has been verified, we will ship your AUO Display Panel product using a reputable courier service. You will receive a tracking number so you can monitor the status of your shipment. We offer both domestic and international shipping options, so you can receive your product no matter where you are located.
