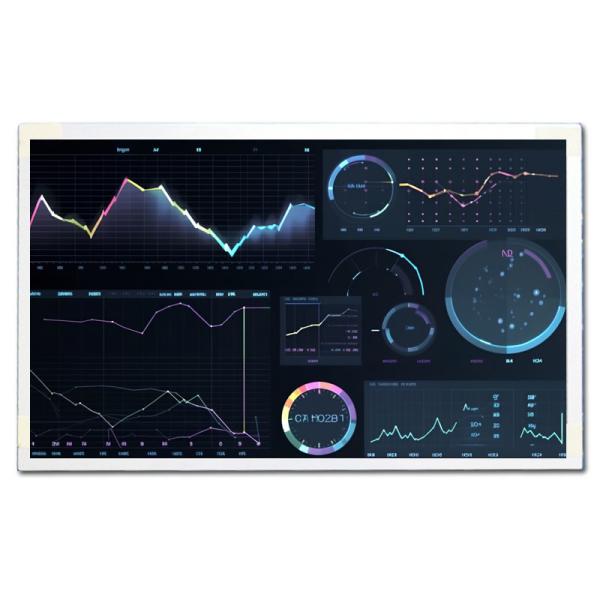

12 inch AUO LCD Display G121EAN01.0 Wide Temperature Display -30℃～85℃

Product Description:

This specification applies to the Color Active Matrix Liquid Crystal Display G121EAN01.0

composed of a TFT-LCD display, a driver and power supply circuit, and a LED backlight system.

The screen format is intended to support WXGA (1280(H) x 800(V)) screen and 16.7M (8-bits) or 262k colors (6-bits). LED driving board for backlight unit is included in G121EAN01.0.

G121EAN01.0 designed with wide viewing angle; wide temperature and long life LED backlight is

well suited for industial applications. G121EAN01.0 is a RoHS product.

Features:

As a trusted lcd display factory, we are proud to offer the following features for the AUO Display Panel:

• IPS panel
• mil spec lcd display
• industrial lcd display
• high brightness lcd panel
• High resolution display

Choose the high-quality AUO LCD Panel for exceptional display performance.

Technical Parameters:

Display Characteristics

Items	Unit	Specifications
Screen Diagonal	[inch]	12.1"
Active Area	[mm]	261.12(H) x 163.2(V)
Pixels H x V		1280 x 3(RGB) x 800
Pixel Pitch	[mm]	0.204 x 0.204
Pixel Arrangement		R.G.B. Vertical Stripe
Display Mode		Normally Black
Nominal Input Voltage VDD	[Volt]	3.3 (Typical)
Power Consumption	[Watt]	TBD
Weight	[Grams]	TBD max.
Physical Size	[mm]	278.0(H) x 184.0(V) x 9.29(D) (Typ.)
Electrical Interface	1 channel LVDS
Surface Treatment		Anti-glare, Hardness 3H
Support Color		16.7M / 262K colors
Temperature Range Operating Storage (Non-Operating)	[oC] [oC]	-30 to +85 (Central) -30 to +85
RoHS Compliance		RoHS Compliance

Optical Characteristics

Item	Unit	Conditions		Min.	Typ.	Max.	Note
White Luminance	[cd/m2]	ILED= 50mA/1 LED Line (center point)		400	500
Uniformity	%	5 points		75%
Contrast Ratio				800	1000	-
Response Time	[msec]	Rising + Falling		---	25
Viewing Angle	[degree] [degree] [degree] [degree]	Horizontal CR = 10	(Right) (Left)	80 80	89 89	--- ---
		Vertical CR = 10	(Upper) (Lower)	80 80	89 89	--- ---
Color / Chromaticity Coordinates (CIE 1931)		Red x		TBD	TBD	TBD
		Red y		TBD	TBD	TBD
		Green x		TBD	TBD	TBD
		Green y		TBD	TBD	TBD
		Blue x		TBD	TBD	TBD
		Blue y		TBD	TBD	TBD
		White x		0.263	0.313	0.363
		White y		0.279	0.329	0.379
Color Gamut	%			-	72	-

Applications:

• Industrial automation control systems
• Medical equipment
• Transportation displays (e.g. aviation, marine, automotive)
• Gaming machines
• Retail and hospitality displays

Support and Services:

AUO provides technical support and services for their display panel products, which includes:

• Product specification and function consultation
• Application and software development support
• Product reliability testing and analysis
• Failure analysis and repair services
• Customization and value-added services
• Training and education services for customers

These services are designed to help customers maximize the performance and lifespan of their display panels, as well as troubleshoot any issues that may arise.

Packing and Shipping:

Product Packaging:

The AUO Display Panel product is carefully packed in a durable and sturdy packaging material to ensure safe delivery. The package includes foam padding to protect the product from any damage during transportation. The package is also labeled with handling instructions and product specifications.

Shipping:

We offer reliable and fast shipping options for the AUO Display Panel product. The product will be shipped within 2-3 business days after the order is placed. We use trusted shipping carriers to ensure prompt and secure delivery. The shipping cost will be calculated based on the destination and weight of the package. Customers can track their shipment using the provided tracking number.
