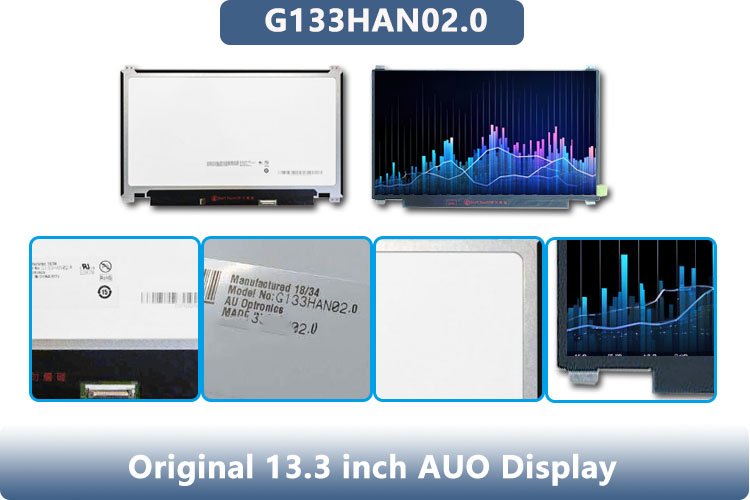

13.3 inch TFT LCD Display Module 1920×1080 pixels G133HAN02.0 AUO LCD with EDP Interface

Product Description:

The G133HAN02.0 AUO Color Display Panel has an high resolution 1920*1080 pixels and a size of 13.3 inches,with its high contrast ratio, this display panel delivers stunningly clear images and videos with deep blacks and bright whites. Its IPS viewing direction provides a wide viewing angle, making it easy to view the panel from different positions without any loss of image quality. Whether you're watching a movie or working on a project, the AUO Color Display Panel provides an immersive viewing experience.

The LED Lifetime of 30K hours ensures that the panel will last for years to come, providing reliable performance and exceptional image quality throughout its lifespan. This feature makes the AUO Color Display Panel an excellent investment for anyone looking for a display panel that will stand the test of time.

Features:

• Medical grade display
• Industrial lcd display
• AUO displays
• High Resolution Lcd display: 1920×1080
• Wide Viewing Angle (RLUD): 89/89/89/89
• EDP LCD display

Technical Parameters:

AUO G133HAN02.0 Optical Details
Basic Information :	Luminance	400cd/m² (Typ.)	Contrast Ratio	800:1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	27 (Typ.)(Tr+Td)
	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Operating Mode	AHVA, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	16.2M (6-bit + FRC)
	Color Temperature	6485K	White Variation	1.25 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio	49%	sRGB	68% coverage
	Adobe RGB	51% coverage	DCI-P3	51% coverage
	Rec.2020	36% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
AUO G133HAN02.0 Mechanical Details
Pixel Features :	Number of Pixel	1920(RGB)×1080, FHD	Arrangement	RGB Vertical Stripe
	Dot Pitch(W×H)	0.05095×0.15285 (H×V)	Pixel Pitch(W×H)	0.15285×0.15285 (H×V) [166PPI]
Physical Size :	Active Viewing(mm)	293.472(H) × 165.078(V)	Outline Dim.(mm)	306.3(H) × 195.29(V)
	Bezel Area(mm)	-	Depth(mm)	3.2 (Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape	Slim (PCBA Bent, T≤3.0mm)
	Aspect Ratio	16:9 (H:V)	Orientation	Landscape type
Mounting :	Face mounting holes (8 pcs) on up, down slugs
Other Spec :	Weight	280g (Max.)	Treatment	Antiglare

Applications:

Idustrial,Medical Imaging,Gaming

Support and Services:

Our technical support and services for AUO Display Panel products include:

• Installation and setup assistance
• Troubleshooting and problem-solving
• Product repair and replacement
• Product maintenance and updates
• Technical documentation and resources
• Training and education on product use and maintenance

We are committed to providing excellent support and service to ensure the best possible performance and lifespan of your AUO Display Panel product.

Packing and Shipping:

Product Packaging:

The AUO Display Panel product will be packed in a sturdy cardboard box with bubble wrap to ensure that it remains safe and undamaged during transport. The box will be labeled with the product name and specifications for easy identification.

Shipping:

The AUO Display Panel product will be shipped via a reputable courier service. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided to the customer once the order has been processed and shipped.
