Product Description:
| BOE LCD SCREEN DV290FBM-N10 |
| Manufacturer | BOE |
| Model Name | DV290FBM-N10 |
| Screen Size | 29.0 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×540 69PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 705.6 × 198.45 (H×V) |
| Outline(mm) | 720.8 × 226.25 (H×V×D) |
| Bezel Area(mm) | 709.6 × 202.45 (H×V) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 1200 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 15(Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | HADS, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | WLED , 50K hours , No Driver |
| Mass | 2.15±0.1Kgs |
| Used for | Digital Signage / Outdoor High Brightness / Stretched Bar LCD |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Features:
- Product Name: BOE LCD Display
- Industrial lcd display
- IPS TFT display
- LVDS display
- LCD display for business
BOE is a renowned lcd display manufacturer that offers high-quality
products. This lvds display features a TFT LCD panel and has an
active area of 705.6*198.4. It has a resolution of 1920*540 pixels
and an outline dimension of 720.8*226.2*20. The storage temperature
range is -20℃ to 60℃.
Applications:
One of the key features of this display is its certification. The
BOE LCD Display is certified to ISO 9241, IEC62341, JEITA CP-3451,
ANSI/AAMI ES60601-1-2, and IEC 60068. This means that it meets the
highest standards of quality and safety, making it suitable for use
in a wide range of applications.

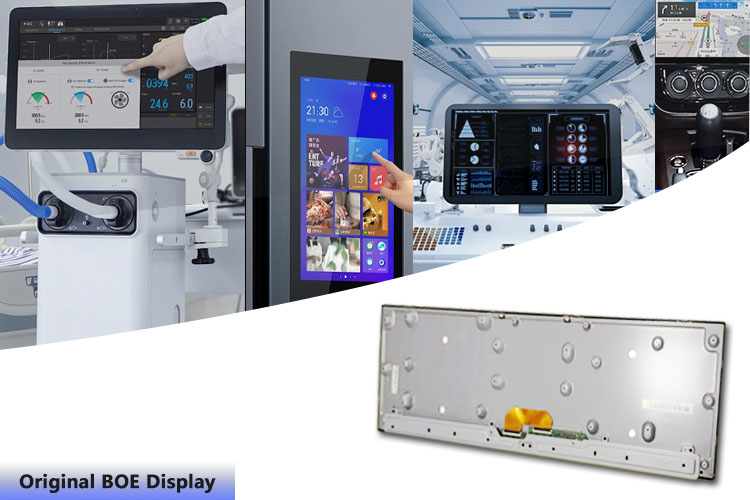

The BOE LCD Display is an industrial TFT LCD display, which means
that it is designed to be used in tough industrial environments.
This display is ideal for use in applications such as factory
automation, process control, and machine vision systems. It is also
suitable for use in medical equipment and other applications where
high-quality displays are required.
The BOE LCD Display is available for purchase in a range of
different sizes, with the DV290FBM-N10 model measuring 29 inches.
The display has a viewing angle of 89/89/89/89 (RLUD), which means
that it can be viewed from almost any angle without distortion or
loss of clarity. The active area of the display is 705.6*198.4,
providing a large and clear viewing area.
The BOE LCD Display has a long LED lifetime of 50K hours, which
means that it will last for many years without needing to be
replaced. The display can be stored at temperatures ranging from
-20℃ to 60℃, making it suitable for use in a wide range of
environments.
The BOE LCD Display uses LVDS display technology, which provides
high-quality images and fast response times. This display is easy
to install and can be connected to a range of different devices,
making it ideal for use in a wide range of applications.
In summary, the BOE LCD Display is a high-quality display panel
that is suitable for use in a wide range of applications and
scenarios. Whether you need a display for use in an industrial
environment, medical equipment, or other applications, the BOE LCD
Display is the ideal choice. So, if you are looking for a
high-quality display that delivers excellent performance and
reliability, then the BOE LCD Display is the perfect choice.
