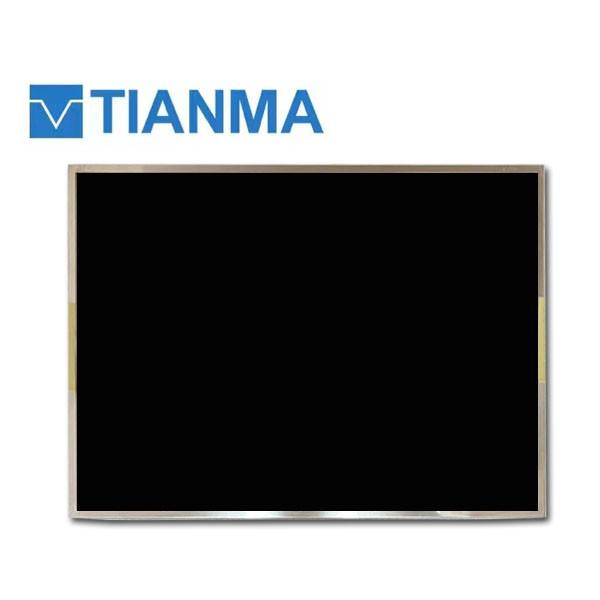

    1000 Nits TM150XDHG01 Industrial Display Panel 1600*1200 High Resolution TFT Display

    Ask Lasest Price
    Brand Name : TIANMA
    Model Number : TM150XDHG01
    Certification : ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068
    Price : Please contact us for latest price
    Delivery Time : 1~7 working days
    Payment Terms : T/T, L/C, Credit card, PayPal
    Supply Ability : 500,0 pieces per day
    • Product Details
    • Company Profile

    1000 Nits TM150XDHG01 Industrial Display Panel 1600*1200 High Resolution TFT Display

    1000 nits TM150XDHG01 Industrial Display Panel 1600*1200 High Resolution TFT Display


    Product Information:

    TIANMA TM150XDHG01 Application Details
    Basic Detail :Panel BrandTIANMAModel NameTM150XDHG01
    Panel Typea-Si TFT-LCD , LCMAnother Name
    Panel Size15”Designed ForIndustrial,Outdoor High Brightness
    Maximum Ratings :OP Temperature-30 ~ 70 °CST Temperature-40 ~ 80 °C
    RoHSRoHSVibration Level
    Features :Wide Temperature,Ultra High Brightness,WLED Backlight,With LED Driver, 6/8bit,Matte
    TIANMA TM150XDHG01 Optical Details
    Basic Information :Luminance1000 cd/m² (Typ.)Contrast Ratio1000:1 (Typ.) (Transmissive)
    Good View at12 o'clockResponse Speed20 (Typ.)(Tr+Td) ms
    Viewing Angle80/80/80/80 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
    Color Performance :ChromaticityWx:0.313; Wy:0.329Display Colors262K (6-bit)
    Color Temperature6485KWhite Variation1.25/1.33 (Typ./Max.)(9 points)
    1931 Color Gamlt :NTSC Ratio54%sRGB75% coverage
    Adobe RGB56% coverageDCI-P356% coverage
    Rec.202040% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    Dispaly Performance :Outdoor VisibilitySunlight ReadableTransmittance-
    TIANMA TM150XDHG01 Mechanical Details
    Pixel Features :Number of Pixel1600(RGB)×1200, UXGAArrangementRGB Vertical Stripe
    Dot Pitch0.0635×0.1905 mm (H×V)Pixel Pitch0.1905×0.1905 mm (H×V) [133PPI]
    Physical Size :Active Viewing(mm)304.8×228.6 mm (H×V)Bezel Area (mm)307.8×231.1 mm (H×V)
    Outline Dim. (mm)318.7×242.5 mm (H×V)Outline Depth6.0/6.5 (Typ./Max.) mm
    Outline Features :Form StyleFlat RectangleOutline Shape
    Aspect Ratio4:3 (H:V)OrientationLandscape type
    Holes & Brackets :Side mounting holes (4-M2.5) on left, right bezel
    Other Features :Weight620gSurfaceAntiglare

    Features:

    • Product Name: TIANMA
    • Size (inch): 15.0
    • Storage Temperature: -40 ~ 80 °C
    • Resolution: 1600×1200
    • Active Area (W*H): 304.8*228.6 Mm
    • Outline Dimension (W*H*T): 318.7*242.5*6.5 Mm
    • Manufactured by a display panel factory
    • Features an edp display interface

    The TIANMA TFT LCD display panel has a viewing angle of 80/80/80/80 (RLUD) that provides a clear view from all angles without any color distortion. This feature is essential in applications where multiple people need to view the screen simultaneously. The product's LED lifetime is 30k hours, meaning that this product can last for a long time, reducing the need for frequent replacements.

    The industrial touch screen monitor is an essential product for applications that require high-quality imaging and video display in harsh environments. The TIANMA product is designed to meet the needs of such applications. The product's robust design and high-quality components ensure that it can withstand harsh environmental conditions. The TM display is engineered to provide reliable and durable performance, making it a suitable choice for demanding industrial applications.

    Applications:

    Some of the common application occasions and scenarios for the TM150XDHG01 include:

    • Medical equipment: The TM150XDHG01 is suitable for use in various medical equipment, such as ultrasound machines, patient monitors, and X-ray machines. Its certifications ensure compliance with relevant safety and quality standards.
    • Industrial automation: With its rugged design and high reliability, the TM150XDHG01 is ideal for use in industrial automation applications, such as factory automation, process control, and robotics.
    • Public transportation: The TM150XDHG01 can be used in various transportation systems, such as trains, buses, and subway systems. Its high brightness and image quality ensure clear and readable displays even in bright sunlight.

    Overall, the TM150XDHG01 is a versatile and reliable LVDS display that is suitable for a wide range of applications. If you are interested in purchasing this product, please contact us for the latest price and to discuss your specific needs.

    Support and Services:

    TIANMA offers a range of technical support and services to ensure the optimal performance and longevity of its products. These services include:

    • Product troubleshooting and diagnosis
    • Repair and maintenance services
    • Software and firmware updates
    • Customization and integration support
    • Technical training and seminars
    • Quality assurance and testing
    • Product lifecycle management

    Our team of experienced technicians and engineers are dedicated to providing exceptional customer service and support. Contact us for more information on how we can help you with your TIANMA product.
