Brand Name : | TIANMA |
Model Number : | P0840XGF1MA00 |
Certification : | ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068 |
Price : | Please contact us for latest price |
Delivery Time : | 1~7 working days |
Payment Terms : | T/T, L/C, Credit card, PayPal |
Supply Ability : | 500,0 pieces per day |

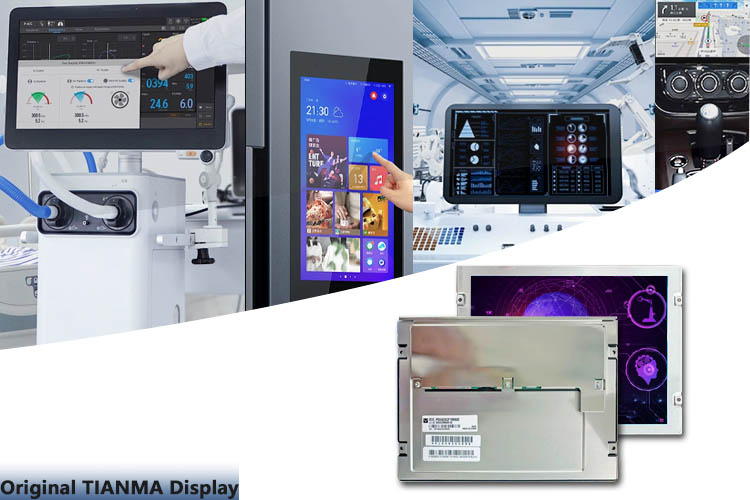

P0840XGF1MA00 TIANMA 8.4 inch LCD Display Panel with 1000nits Luminance Resolution 1024*768
Brand | TIANMA |
Model P/N | P0840XGF1MA00 |
Diagonal Size | 8.4" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1024(RGB)×768, XGA 152PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 170.496(W)×127.872(H) mm |
Bezel Opening | 173.5(W)×130.87(H) mm |
Outline (mm) | 199.5×149×10.2 (H×V×D) |
Treatment | Antiglare |
Luminance | 1000 cd/m² (Typ.) |
Contrast Ratio | 1000 : 1 (Typ.) (TM) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
Response | 25 (Typ.)(Tr+Td) ms |
Good View at | Symmetry |
Work Mode | SFT, Normally Black, Transmissive |
Color Depth | 262K/16.7M 70% NTSC |
Backlight | 7S3P WLED , 100K hours , No Driver |
Mass | 303g (Typ.) |
Used for | construction or agriculture market |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | LVDS (1 ch, 6/8-bit) , Connector 20 pins |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
One of the standout features of this display panel is its LED lifetime of 100,000 hours. This means you can rely on it to provide bright, clear visuals for years to come, making it a great investment for any application.
The TIANMA Display Panel also boasts an impressive viewing angle of 88 degrees in all directions (RLUD). This ensures that everyone who needs to see the screen can do so easily, no matter where they are positioned.
When it comes to interface, this display panel uses LVDS 20, which is a reliable and widely-used standard. This makes it easy to integrate into a wide range of systems and applications, without the need for additional adapters or converters.
Finally, the TIANMA Display Panel is designed to withstand extreme temperatures, with a storage range of -40 to 90 degrees Celsius. This means you can rely on it to function in even the most challenging environments, making it an excellent choice for a wide range of applications.
One of the key advantages of the TIANMA P0840XGF1MA00 display panel
is its certification. This panel has achieved several
certifications, including ISO 9241, IEC62341, JEITA CP-3451,
ANSI/AAMI ES60601-1-2, and IEC 60068. These certifications
demonstrate the high quality and reliability of the product, giving
customers peace of mind when using it in their applications.
The TIANMA P0840XGF1MA00 display panel is perfect for use in TFT
LCD panels, TFT monitors, and TFT modules. Its high-quality IPS
viewing direction and wide viewing angle (RLUD) of 88/88/88/88 make
it an ideal choice for applications that require clear and vivid
imaging. Additionally, the 1000 nits luminance and 100K LED
lifetime ensure that the panel delivers excellent performance over
a long period of time.
The TIANMA P0840XGF1MA00 display panel is available for purchase
with a minimum order quantity of 1 piece. Customers can contact the
manufacturer for the latest price and delivery time. The packaging
details can also be customized according to the customer's
requirements. The panel can be purchased using various payment
methods, including T/T, L/C, credit card, and PayPal. With a daily
supply ability of 500,0 pieces, customers can be assured of a
steady supply of the TIANMA P0840XGF1MA00 display panel for their
applications.
The TIANMA Display Panel product technical support and services
include:
- Assistance with product selection and customization
- Technical consultation and troubleshooting
- Product development support
- Quality assurance and testing
- Warranty and repair services
- Training and education on product usage and maintenance
Product Packaging:
The TIANMA Display Panel will be packed carefully in a sturdy
cardboard box with protective foam padding to ensure that it
arrives at your doorstep in perfect condition.
Shipping:
The TIANMA Display Panel will be shipped via a reliable courier
service, such as FedEx or UPS. Shipping times will vary depending
on your location, but we will provide you with a tracking number so
that you can easily monitor the progress of your shipment.
![]() |
